Seismic Streamer Bend Protection System for Survey Vessels

In the realm of marine geophysical exploration, seismic streamers (Acoustic Receivers) represent the "sensory nerves" of a seismic survey vessel, possessing immense asset value. However, in harsh and turbulent operating environments, the Lead-in section of the streamer is constantly subjected to intense tensile loads, surge impacts, and complex dynamic ocean currents. If these critical interfaces experience excessive deformation, the high-sensitivity data transmission chain is at risk of damage, often leading to significant operational downtime and substantial economic loss.

To overcome these engineering challenges, we have developed a High-Performance Interlocking Seismic Streamer Bend Restrictor, custom-engineered for marine exploration.

Core Requirements for Seismic Streamer Bend Restrictors

Seismic survey vessels operate by towing kilometers of streamlined sensor arrays. In the critical zone where the lead-in connects to the vessel's handling winch system, the streamer is highly susceptible to critical bending due to vessel heave and subsea dynamic loads. Once the bending radius exceeds its limit, the internal armor wires and precision signal elements suffer irreversible mechanical deformation. This not only results in data link failure but also induces structural fatigue due to stress concentration, significantly shortening the operational lifespan of the equipment.

Technical Highlights of Bend Restrictor

Our bend restriction solution is far more than a simple outer casing; it is a sophisticated engineering defense system:

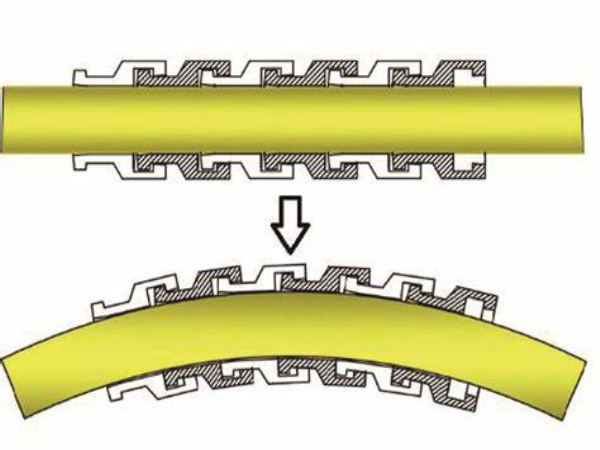

Graded Stiffness Architecture: The product utilizes an advanced modular interlocking structure. Within the normal operating radius, the system maintains excellent flexibility, allowing for seamless cable deployment and retrieval. When bending stress approaches the failure threshold, the gaps between the interlocking modules close, causing the system's stiffness to surge. This physically locks the bending radius, ensuring the streamer remains within its safe operating envelope.

Mechanical Decoupling & Pressure Compensation: By integrating a graded bend restriction mechanism with fluid pressure compensation, this design effectively offloads external tension from sensitive signal transmission elements. This ensures that even under dynamic deep-sea conditions, the streamer maintains "zero-stress" and high-fidelity signal transmission.

Key Advantages of Bend Restrictor

Exceptional Dynamic Performance: Regardless of how severe the sea conditions are, our system precisely dissipates dynamic loads, safeguarding the continuity and reliability of the data link.

Operational Efficiency: Featuring a unique split-design, the system allows for rapid field maintenance and module replacement without the need to cut cables or disassemble complex connectors, effectively minimizing Non-Productive Time (NPT) for the survey vessel.

Superior Durability: Crafted from high-strength engineering polyurethane (PU), the system offers excellent resistance to salt spray, corrosion, and hydrolysis, ensuring long-term stability during intensive exploration campaigns.

In the competitive arena of deep-sea exploration, the precise acquisition of every frame of geological data relies on the steadfast protection of critical connection nodes. Our seismic streamer bend restrictor is not merely a knee pad for the cable; it is an insurance policy for your offshore exploration assets. For detailed technical specifications or to request a customized proposal, please contact our technical support center today.
