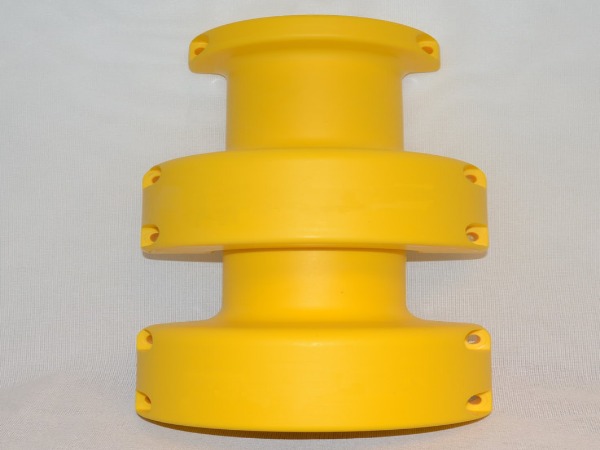

Polyurethane Bend Restrictor for Subsea Cables, Hoses & Pipelines

A bend restrictor polyuretane injection is designed to forcibly limit the degree of bending, ensuring that the bending radius of protected cables, hoses, or pipelines always remains greater than their design-allowed minimum bending radius. Once a dangerous angle is approached, it locks immediately, forming a rigid support.

Polyurethane Performance Advantages:

High Strength and Toughness: Capable of withstanding the immense hydrostatic pressure and ocean current impacts at thousands of meters below sea level.

Excellent Wear Resistance: Effectively resists long-term abrasion from sea sand, reefs, and friction with the seabed.

Outstanding Corrosion Resistance: Completely immune to seawater, salt spray, and microorganisms, with a service life far exceeding that of ordinary metals.

Superior Dynamic Fatigue Performance: Resists cracking or failure under long-term swaying and stress cycles.

Working Principle:

Normal Operating State: Individual segments are connected via a hinging system, allowing the cable to bend and swing freely within safe limits without affecting normal installation, retrieval, or operation.

Limit Protection State: When external forces, such as ocean current pulling, vessel anchor damage, or installation handling errors, attempt to bend the cable beyond a critical angle, adjacent segments rapidly contact and lock into each other. Multiple segments interlock in a chain reaction, instantly forming a rigid bending arc that locks the bending radius within a safe value. This dissipates destructive stress across the restrictor itself, thereby protecting the fragile internal fibers, wires, or steel pipes.

Consult the technical team immediately to obtain the complete solution for the articulated bending protection system!
