Bend Stiffeners for Subsea Umbilicals, Cables and Flexible Pipe

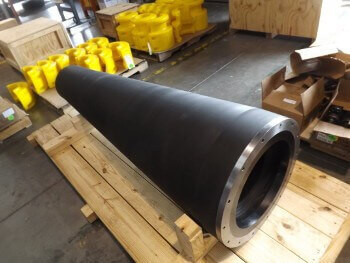

Bend stiffeners are purpose-built components that protect umbilicals, flexible pipelines and subsea cables from excessive curvature where they transition to terminations, risers or subsea hardware. Manufactured from polyurethane with an integrated metal insert or flange, they provide a controlled stiffness gradient that prevents over‑bending and reduces dynamic fatigue at critical termination points.

Materials and Basic Construction

Core material: polyurethane (chosen for durability, abrasion resistance and resilience in dynamic environments).

Internal structure: a metal insert or flange that allows mechanical transition and bolting to termination hardware.

Shape: typically conical or tapered to give a progressive increase in stiffness from the cable/pipe outwards.

Variants: single-piece molded, segmented or split designs for retrofitting, and custom lengths/diameters to suit specific installations.

Key Advantages

Custom engineered to application — length, taper angle, wall thickness and flange details are matched to the specific umbilical/cable geometry and load regime.

High durability in dynamic exposure — polyurethane withstands repeated flexing, abrasion and many marine environments.

Cost‑effective protection — reduces the risk of expensive failures and prolongs the operational life of subsea assets.

Design Considerations

Define the maximum allowable bending radius and compare to the natural curvature under expected loading.

Determine dynamic load spectrum (wave/current/vessel motion) to size stiffness and length.

Match inner bore and clamping method to the outer diameter and materials of the umbilical/cable to avoid slip or concentrated pressure.

Specify flange pattern and material to suit the mating termination or connector, including corrosion protection for the metal parts.

Consider segmented or split designs when in‑situ installation around existing lines is required.

Applications and Variants

Used on flexible pipes, umbilicals, power/data cables and hoses in floating and fixed installations.

Alternatives or complements include vertebrae bend restrictors and roller sheaves for umbilical management

Summary

Bend stiffeners are a practical, effective solution to prevent over‑bending and reduce dynamic fatigue at termination points of subsea flexible elements. When properly designed and installed — sized for bending radius, dynamic load and interface geometry — they significantly extend service life and reduce operational risk. For best results, engage a manufacturer or engineering specialist to provide custom dimensions, flange interfaces and fatigue‑proof designs tailored to your project.
