In the offshore energy industry, subsea cables and pipelines must be installed with precision and protected against mechanical damage throughout their service life. To achieve this, subsea centralizers, also referred to as umbilical centralizers or J-tube centralizers, play a vital role in guiding and supporting power cables, umbilicals, and flowlines during installation and operation.
J-tubes in offshore wind and oil platforms
In offshore wind power projects, cables are pulled through J-tubes to connect inter-array and export power cables from the seabed to offshore substations or wind turbine foundations. These tubes ensure safe routing of high-voltage subsea power cables.
On offshore oil and gas platforms, J-tubes serve a similar function to umbilicals and pipelines, providing a controlled passage for hydraulic lines, control umbilicals, and production pipelines into topside facilities.
While both industries rely on J-tubes, their design specifications differ. Offshore wind requires larger diameters to accommodate export power cables, while oil platforms often prioritize multi-line umbilical protection, higher mechanical resistance, and compatibility with dynamic risers.
Factors influencing subsea pull tube centralizer design
Designing a centralizer for J-tubes involves several critical considerations:
Cable/pipeline diameter – the centralizer must be precisely matched to the dimensions of the cable or umbilical.
J-tube geometry – variations in tube curvature, diameter, and length influence the size and spacing of centralizers.
Bending radius requirements – preventing over-bending is essential to maintain cable integrity.
Material performance – centralizers must withstand seawater, hydrostatic pressure, abrasion, and long-term fatigue.
Installation method – pull-in operations demand designs that minimize friction and ensure smooth entry into the J-tube.
Operational loads – dynamic forces from currents, waves, and platform movement must be accounted for.
Philson’s approach to centralizer design

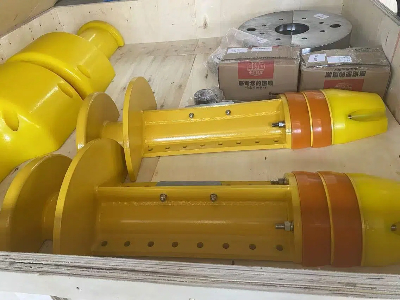

As a specialist in polyurethane subsea accessories, Philson designs and manufactures high-performance pull tube centralizers tailored to offshore projects. Key strengths include:
Customized engineering – designs matched to specific cable diameters, j-tube geometry, and client requirements.
Advanced materials – use of high-grade polyurethane with superior wear resistance, impact strength, and seawater stability.
In-house r&d and testing – sophisticated modeling and physical testing to verify performance under subsea loads.
Application flexibility – solutions for both offshore wind power export cables and oil platform umbilicals, ensuring reliable protection across sectors.
Efficient delivery – streamlined production and cost-effective solutions backed by over 10 years of expertise.
The subsea pull tube centraliser is a small but critical component in offshore cable and umbilical systems. With differences in design requirements between offshore wind j-tubes and oil platform j-tubes, careful engineering is essential. By leveraging advanced polyurethane technology, Philson delivers durable, customized centralizers that enhance safety, reliability, and efficiency in offshore energy projects.
